PARKSIDE RESIDENCE
RESIDENTIAL DESIGN
Residential Parkside Project Fixtures & Finishes Package
Parkside residential is an addition and renovation project that I worked on during my time at Mila & Co. Inc. as a Design Assistant. This project was designed by the Lead Designer, Laura Slifierz, with adjustments made along the way by Design Assistant Kristen Forsythe, and myself. The project was built and implemented by the help off the skilled laborers at Mila & Co. Inc., and our skilled trades workers, which includes companies such as Allstar Granite, Clifford Electric, Santana Roofing, and more.
Residential Parkside Project Fixtures & Finishes Package: Main Floor Plan
The proposed main floor plan of the addition. Drawings are permit ready, and solidified by engineer, Michael Feiden of Vinlanda Engineering.
Residential Parkside Project Fixtures & Finishes Package: Full House Overview
Overview of materials and finishes to illustrate the overall goal and color palette for the renovation.
Residential Parkside Project Fixtures & Finishes Package: Kitchen Inspo
Images on our inspiration boards come straight from the client’s submissions, ensuring that our designs perfectly align with their vision.
Residential Parkside Project Fixtures & Finishes Package: Kitchen 3D View
Using SketchUp, the kitchen design is presented in 3D to ensure the client is satisfied with the overall concept. The kitchen was designed by Laura Slifierz, and personally customized to ensure the clients overall happiness.
Residential Parkside Project Fixtures & Finishes Package: Kitchen 3D View
During this project, we were introduced to a new program called Mozaik, which integrates with our CNC to streamline and enhance the process of creating custom millwork. All Mozaik work is personally done.
Residential Parkside Project Fixtures & Finishes Package: Kitchen 2D View
The kitchen design is meticulously crafted to meet the client's needs, with extensive site meetings held to address every detail. Cabinet hardware placement is precisely planned to align with the client's vision for their space.
Residential Parkside Project Fixtures & Finishes Package: Kitchen 2D View
The kitchen design is meticulously crafted to meet the client's needs, with extensive site meetings held to address every detail. Cabinet hardware placement is precisely planned to align with the client's vision for their space.
Residential Parkside Project Fixtures & Finishes Package: Kitchen 2D View
The kitchen design is meticulously crafted to meet the client's needs, with extensive site meetings held to address every detail. Cabinet hardware placement is precisely planned to align with the client's vision for their space.
Residential Parkside Project Fixtures & Finishes Package: Kitchen 3D View
The island is designed with ample space around it to prevent obstruction during kitchen tasks, such as opening fridge doors or using the stove. This page also outlines the cabinet hardware placement to ensure that every detail meets the client's needs.
Residential Parkside Project Fixtures & Finishes Package: Kitchen Dining 3D View
The kitchen design is meticulously crafted to meet the client's needs, with extensive site meetings held to address every detail. Cabinet hardware placement is precisely planned to align with the client's vision for their space.
Residential Parkside Project Fixtures & Finishes Package: Kitchen 2D View
As discussed in our site meetings with the client, we have meticulously planned the interior components for every cabinet.
Residential Parkside Project Fixtures & Finishes Package: Kitchen 2D View
As discussed in our site meetings with the client, we have meticulously planned the interior components for every cabinet.
Residential Parkside Project Fixtures & Finishes Package: Kitchen 2D View
As discussed in our site meetings with the client, we have meticulously planned the interior components for every cabinet.
Residential Parkside Project Fixtures & Finishes Package: Kitchen 2D View
As discussed in our site meetings with the client, we have meticulously planned the interior components for every cabinet.
Residential Parkside Project Fixtures & Finishes Package: Kitchen 2D View
As discussed in our site meetings with the client, we have meticulously planned the interior components for every cabinet.
Residential Parkside Project Fixtures & Finishes Package: Kitchen Dining 2D View
As discussed in our site meetings with the client, we have meticulously planned the interior components for every cabinet.

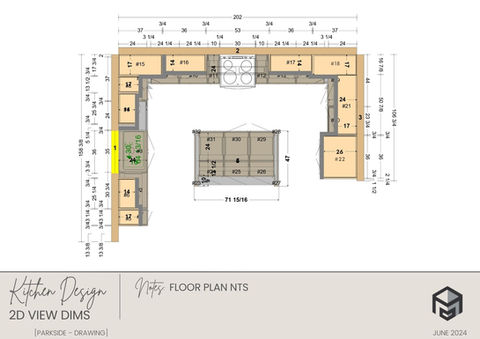

Residential Parkside Project Fixtures & Finishes Package: Kitchen Floor Plan
The kitchen floor plan, created with Mozaik, specifies the custom cabinet dimensions and assigns a number to each unit.
Residential Parkside Project Fixtures & Finishes Package: Kitchen 2D View Dimensioned
Working elevation drawings from Mozaik are provided for cabinet manufacturing to ensure a smooth transition from design to build.
Residential Parkside Project Fixtures & Finishes Package: Kitchen 2D View Dimensioned
Working elevation drawings from Mozaik are provided for cabinet manufacturing to ensure a smooth transition from design to build.
Residential Parkside Project Fixtures & Finishes Package: Kitchen 2D View Dimensioned
Working elevation drawings from Mozaik are provided for cabinet manufacturing to ensure a smooth transition from design to build.
Residential Parkside Project Fixtures & Finishes Package: Kitchen Bulkhead Details
Each unit along the Fridge wall comes into contact with a bulkhead build-out for the HVAC system. To maximize space and maintain an appealing appearance, every section of the millwork connecting to the bulkhead has been carefully detailed for precise manufacturing.
Residential Parkside Project Fixtures & Finishes Package: Kitchen Bulkhead Details
Each unit along the Fridge wall comes into contact with a bulkhead build-out for the HVAC system. To maximize space and maintain an appealing appearance, every section of the millwork connecting to the bulkhead has been carefully detailed for precise manufacturing.
Residential Parkside Project Fixtures & Finishes Package: Kitchen Bulkhead Details
Each unit along the Fridge wall comes into contact with a bulkhead build-out for the HVAC system. To maximize space and maintain an appealing appearance, every section of the millwork connecting to the bulkhead has been carefully detailed for precise manufacturing.
Residential Parkside Project Fixtures & Finishes Package: Kitchen Bulkhead Details
Each unit along the Fridge wall comes into contact with a bulkhead build-out for the HVAC system. To maximize space and maintain an appealing appearance, every section of the millwork connecting to the bulkhead has been carefully detailed for precise manufacturing.
EAST RIVER RESIDENCE
RESIDENTIAL DESIGN
Residential East River Project Fixtures & Finishes Schedule
This project was a small renovation job from Mila & Co. Inc. to the existing laundry, powder and mudroom to make it more functional and appealing. The lead designer, Laura Slifierz created the millwork design, and was edited personally using Sketchup. All content was personally managed and presented using Canva.
Residential East River Project Fixtures & Finishes Schedule: Mudroom Inspo
Images submitted by the client are used to assemble our inspiration boards, ensuring we capture and execute their vision.
Residential East River Project Fixtures & Finishes Schedule: Laundry Inspo
Images submitted by the client are used to assemble our inspiration boards, ensuring we capture and execute their vision.
Residential East River Project Fixtures & Finishes Schedule: Powder Inspo
Images submitted by the client are used to assemble our inspiration boards, ensuring we capture and execute their vision.
Residential East River Project Fixtures & Finishes Schedule: Existing Space
Images depict the existing space.
Residential East River Project Fixtures & Finishes Schedule: Existing Space
A simple floor plan of the current existing space.
Residential East River Project Fixtures & Finishes Schedule: Laundry Room Rendering
Renders of the space are personally created using Enscape and SketchUp to assist the client in choosing finishes for the space.
Residential East River Project Fixtures & Finishes Schedule: Mudroom Rendering
Renders of the space are personally created using Enscape and SketchUp to assist the client in choosing finishes for the space.
Residential East River Project Fixtures & Finishes Schedule: Powder Room Rendering
Renders of the space are personally created using Enscape and SketchUp to assist the client in choosing finishes for the space. The powder room design was done personally using SketchUp to detail the paneling on the wall.
Residential East River Project Fixtures & Finishes Schedule: Laundry + Mudroom 3D View
The custom millwork was designed by Lead Designer, Laura Slifierz, and edited and detailed personally using SketchUp to meet the clients expectations.
Residential East River Project Fixtures & Finishes Schedule: Laundry + Mudroom 3D View
The custom millwork was designed by Lead Designer, Laura Slifierz, and edited and detailed personally using SketchUp to meet the clients expectations.
Residential East River Project Fixtures & Finishes Schedule: Laundry + Mudroom 3D View Dimensioned
The custom millwork was designed by Lead Designer, Laura Slifierz, and edited and detailed personally using SketchUp to meet the clients expectations.
Residential East River Project Fixtures & Finishes Schedule: Laundry + Mudroom 3D View Dimensioned
The custom millwork was designed by Lead Designer, Laura Slifierz, and edited and detailed personally using SketchUp to meet the clients expectations.
Residential East River Project Fixtures & Finishes Schedule: Laundry + Mudroom 3D View Dimensioned
The custom millwork was designed by Lead Designer, Laura Slifierz, and edited and detailed personally using SketchUp to meet the clients expectations.
Residential East River Project Fixtures & Finishes Schedule: Laundry + Mudroom 2D View Dimensioned
The custom millwork was designed by Lead Designer, Laura Slifierz, and edited and detailed personally using SketchUp to meet the clients expectations.
Residential East River Project Fixtures & Finishes Schedule: Laundry + Mudroom 2D View Dimensioned
The custom millwork was designed by Lead Designer, Laura Slifierz, and edited and detailed personally using SketchUp to meet the clients expectations.
Residential East River Project Fixtures & Finishes Schedule: Laundry + Mudroom 2D View Dimensioned
The custom millwork was designed by Lead Designer, Laura Slifierz, and edited and detailed personally using SketchUp to meet the clients expectations.
Residential East River Project Fixtures & Finishes Schedule: Laundry + Mudroom 2D View Dimensioned
The custom millwork was designed by Lead Designer, Laura Slifierz, and edited and detailed personally using SketchUp to meet the clients expectations.
Residential East River Project Fixtures & Finishes Schedule: Laundry + Mudroom 3D View Dimensioned
The interior cabinet detail is for manufacturing to ensure all space int he unit is useable.
Residential East River Project Fixtures & Finishes Schedule: Laundry + Mudroom Materials + Finishes Overview
Material swatches and key finishes are assembled together to give the client a visual representation of how the selected finishes work together in each space.
Residential East River Project Fixtures & Finishes Schedule: Laundry + Mudroom + Powder Schedule
All furniture and fixture specification were personally sourced to meet clients needs.
Residential East River Project Fixtures & Finishes Schedule: Laundry + Mudroom + Powder Schedule
All furniture and fixture specification were personally sourced to meet clients needs.
Residential East River Project Fixtures & Finishes Schedule: Laundry + Mudroom + Powder Schedule
All furniture and fixture specification were personally sourced to meet clients needs.
Residential East River Project Fixtures & Finishes Schedule: Laundry + Mudroom + Powder Schedule
All furniture and fixture specification were personally sourced to meet clients needs.
Residential East River Project Fixtures & Finishes Schedule: Floor + Wall Finishes Schedule
Flooring and Wall Finishes were selected by client, and suggested by both Laura Slifierz and I.
MCCOMB RESIDENCE
RESIDENTIAL DESIGN
Residential The "McComb" Residence Perspective Drawing
Hand-rendering perspective using Pantone markers, and pencil crayon. Shows simplistic design that follows the sleek concept.
Residential The "McComb" Residence Elevation
The Living space elevation shows the open concept space that is open to lot's of natural light.
Residential The "McComb" Residence Kitchen Elevation
Kitchen Elevation shows the galley style kitchen that has incorporated being open and inviting for guests to be entertained.
Residential The "McComb" Residence Key Plan
The unit selected was the South-West unit as it would get the most sun during the day.
Residential The "McComb" Residence Furniture Plan
Hand-drafted furniture plan has open concept public areas while private quarters are more hidden.
Residential The "McComb" Residence Drawing Package
Proposed floor and furniture plan on hand-drafted title block.
Residential The "McComb" Residence Working Drawing Package
Key Plan with Kitchen and Living Area Elevations
Residential The "McComb" Residence Working Drawing Package
Proposed floor plan and wall systems used throughout the unit for contractor to reference.
Residential The "McComb" Residence Working Drawing Package
Furniture plan completed with dimensions for proper furniture and casework placement.
Residential The "McComb" Residence Working Drawing Package
Reflected Ceiling Plan complete with lighting legend and notes for electrician.
Residential The "McComb" Residence Working Drawing Package
Finishes plan regarding all floor finishes of the unit. Material's specified provide for sleek and modern design.
Residential The "McComb" Residence Working Drawing Package
Wall finishes plan complete with all finishes and materials used for walls, again cohesive with the design concept.
Residential The "McComb" Residence Process Work
Adjacency matrix and bubble diagram option. Many bubble diagrams were made to ensure most efficient use of space was chosen.
Residential The "McComb" Residence Process Work
Set of bubble diagrams to help with space planning.
Residential The "McComb" Residence Process Work
Bubble diagrams to help with space planning.
CAMERON RESIDENCE
RESIDENTIAL DESIGN
Residential "Cameron" Residence Client Profile
An introduction to the client and concept for the proposed residential design.
Residential "Cameron" Residence Electrical and Lighting Legend
Legends provided for Reflected ceiling Plan symbols.

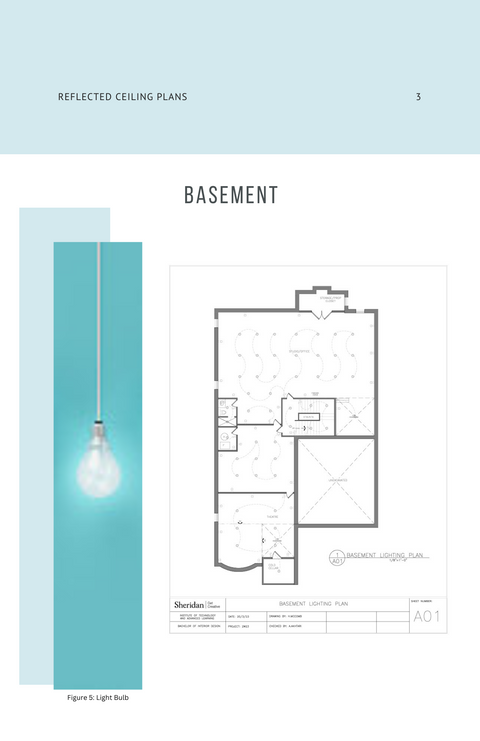

Residential "Cameron" Residence Reflected Ceiling Plan
Reflected ceiling plan of basement to provide sufficient lighting for clients photographer son as well as a home theatre for family movie nights.
Residential "Cameron" Residence Reflected Ceiling Plan
First floor provides sufficient lighting for the public areas of the home.
Residential "Cameron" Residence Reflected Ceiling Plan
Second floor provides sufficient lighting for bedroom and bathroom spaces.
Residential "Cameron" Residence Floor Plan
Basement floor plan includes photography studio, lounge, and a movie theatre as client's son is photographer and still lives at home, and client often has guests over, so an entertainment area was a must.
Residential "Cameron" Residence Floor Plan
Main floor plan hosts public areas of the home. Kitchen and living Area are open concept to provide a large entertaining space for client's guests. Client also requests a private office space as she mostly works from home which is tucked in the back corner of the plan.
Residential "Cameron" Residence Floor Plan
Second Floor plan hosts privcate quarters of the home. Providing rooms for 2 guests, one for clients son, and one for client and husband complete with his and hers closets and ensuite. All bedrooms have access to a bathroom, one bathroom is shared between two rooms.

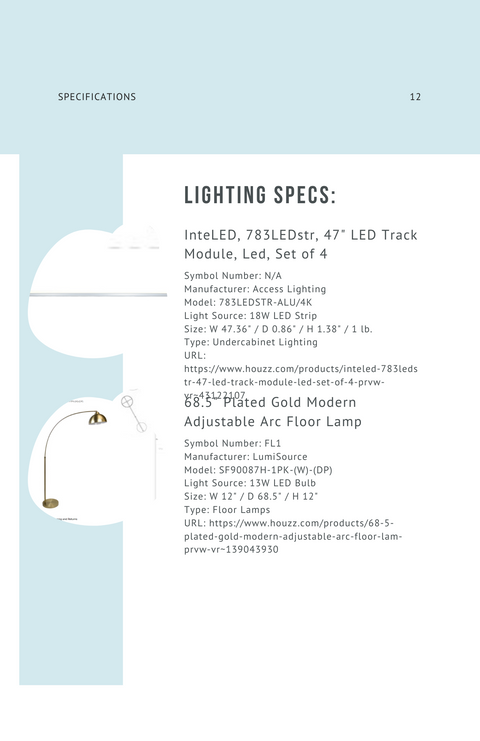

Residential "Cameron" Residence Lighting Specifications
Keeping the concept in mind, lighting fixtures were sourced in accordance with the design.
Residential "Cameron" Residence Lighting Specifications
Keeping the concept in mind, lighting fixtures were sourced in accordance with the design.
Residential "Cameron" Residence Lighting Specifications
Keeping the concept in mind, lighting fixtures were sourced in accordance with the design.
Residential "Cameron" Residence Lighting Specifications
Keeping the concept in mind, lighting fixtures were sourced in accordance with the design.
Residential "Cameron" Residence Kitchen Perspective Rendering
Rendering provided to show the effect of lighting in the kitchen of the design, to ensure it is adequate enough for the users.
